Expansion Valves: The expansion valve is a complex valve which regulates refrigerant flow at the evaporator inlet with an internal moving rod mechanism. This rod opens and closes to differing heights based upon the cooling burden put upon the system. This process of metering modulates the flow according to the temperature of the refrigerant in the evaporator coil. Too much refrigerant could cause the evaporator to get too cold and even freeze up the coils. Too little refrigerant would result in inadequate cooling.
Clogged Car Orifice Tube - By Drake Auto. The spare parts industry pundits of one of the leading suppliers of Spare Parts for Ashok Leyland in this blog would like to discuss in detail the symptoms and accordingly the replacement procedure of car air conditioning orifice tube, or most commonly known as the expansion valve. Orifice Tube is a device that plays a quintessential role in. An expansion valve is an AC component that is commonly found on many road going vehicles. It is usually installed at the evaporator inlet and works together with the orifice tube to regulate the flow of refrigerant through the vehicle’s AC system.
The refrigerant which enters the expansion valve is high-pressure liquid, and is warm. The liquid which flows through the valve and enters the evaporator is low-pressure and cold. This is the exact point where the refrigerant has passed from what is known as the “high side” to the “low side” of the system.
Orifice Tubes:
Unlike the expansion valve, the orifice tube is a simple fixed device with no moving parts. It therefore cannot vary the flow of refrigerant into the evaporator, but rather causes a permanent restriction in the system. However, like the expansion valve the orifice tube regulates refrigerant flow through the system and filters debris which may come through in its screen.
It becomes necessary to replace the orifice tube if the fine mesh screen or the internal components of the orifice tube become plugged, restricting refrigerant and lubricant flow. Orifice tubes also designate the dividing point between the “high” and “low” sides of the system.
LMK 2019
Here’s where the orifice tube is located
Auto AC orifice tube locations

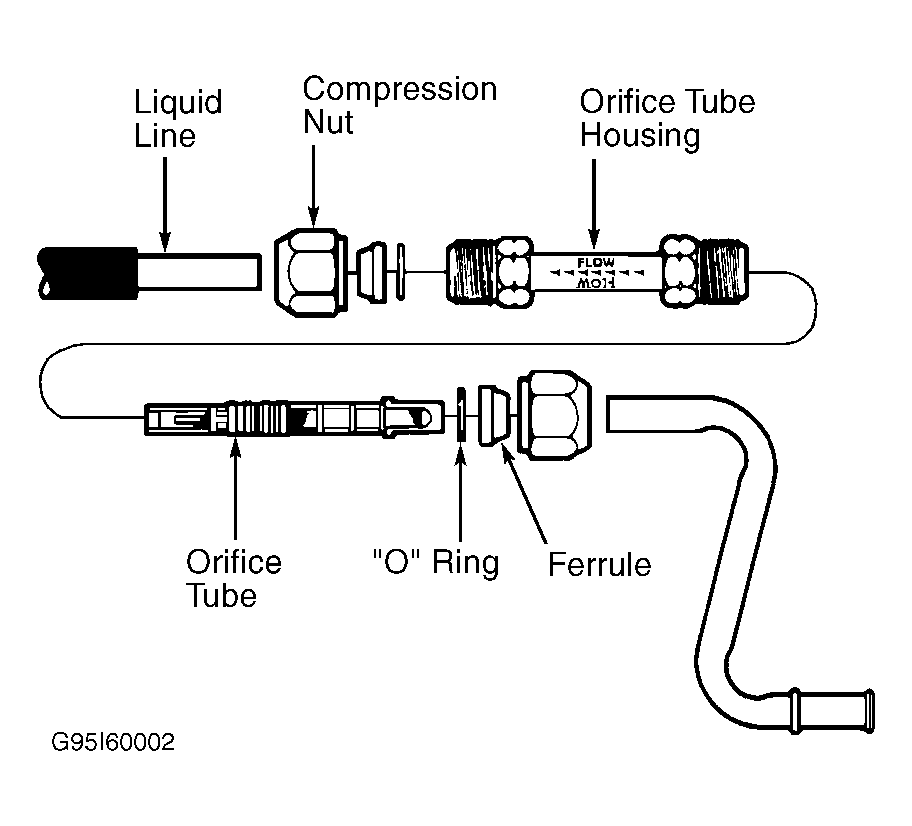

Because of the way an orifice tube works, it’s usually located on the inlet to the evaporator coil. However, on some vehicles the orifice tube location varies. Sometimes it is built into the liquid or high pressure line or inserted into the high pressure line right where the line connects to the condenser. When the orifice tube is built into the line, it’s referred to as a Liquid Line Orifice Tube (LLOT) or a Suction and Liquid Line with Orifice Tube (SLOT).
The orifice tube may be located:
In the inlet tube to the evaporator
Built into the high pressure liquid line
Inserted into the high pressure line near the condenser
The 5 different types of Auto AC orifice and expansion valves
How to replace and orifice tube
Before you replace an orifice tube, LLOT or SLOT, make sure you understand how an orifice tube system works and ensure you’ve done the right testing to conclude the problem is actually caused by the orifice tube. Replacing the orifice tube requires you to completely evacuate the AC system and disconnect the high pressure liquid line. It’s not a fun job.
What you’ll need to replace an orifice tube
• Needle nose pliers
• Orifice removal tool
• New receiver/drier
• AC line disconnect tool
Ac Orifice Tube Size Chart
• Replacement orifice of the exact same color and part number as the old unit
Orifice Tube Installation
• New AC O-ring and gasket kit for your vehicle
• Refrigerant oil
• Refrigerant recovery machine
• AC vacuum pump
• AC manifold gauges
• AC refrigerant scale
• Replacement refrigerant
Recover and evacuate your car’s AC system
- Buy or rent a refrigerant recovery machine.
- Attach the manifold gauge set to the high and low side ports on your car’s AC system
- Recover the old refrigerant (It is illegal to vent the refrigerant into the atmosphere)
Disconnect the high pressure line from the evaporator coil
Use the line disconnect tool to detach the high pressure line from the evaporator
Remove the orifice tube using needle nose pliers or removal tool. Note the orientation of the orifice tube. It must go back in the same way. Lubricate the O-rings on the new orifice tube with AC oil. Insert the new orifice tube into the evaporator or LLOT or SLOT.
Lubrication new O-rings and gaskets with AC oil and install on line
Reconnect the liquid line to the evaporator or condenser and follow factory specs for tightening (if required).
Replace the accumulator
Always replace the accumulator when replacing an orifice tube
Evacuate the system
Add AC oil
Measure how much oil came out during the recovery process and replace with the same amount of oil
Evacuate the AC system
Attach the vacuum pump and pull a vacuum on the entire system for at least 30-minutes
Recharge with refrigerant
Using the refrigerant scale, recharge with the EXACT amount of refrigerant. Overcharging by as little as 2-oz can dramatically reduce the performance of your car’s AC system. MORE is NOT better!
WARNING about plugged orifice tubes
Most orifice tubes fail due to contamination in the AC system due to sealer, oil degradation or mechanical deterioration. Replacing a plugged orifice tube without solving the root problem will result in another plugged orifice tube. If your orifice tube looks the one below, don’t fool yourself into thinking you can get by with just a new orifice tube. You’ll have to replace the compressor, condenser and even the evaporator.
New and clogged AC orifice tube. Clogged tube shows evidence of “Black Death.”
